Online Particle Size Analyzer
•Particle size range: 0.1 to 1000µm
•Dispersion type: Dry
•Technology: Laser diffraction
Repeatability: ≤3% (GBRM D50)
Accuracy: ≤3% (GBRM D50)
SOP: Standard Operation Procedure
Detectors: 68 pieces
Test speed: ≤1 min
High-performance semiconductor laser with long lifespan
Automatic Alignment
Automatic Centering
|
BT-Online 1 |
|
|
|
Particle size distribution |
Dry powder |
|
|
Theory |
Laser diffraction |
|
|
Analysis theory |
Mie and Fraunhofer |
|
|
Typical interval measurement time |
≥1 min |
|
|
Measurement range |
0.1 - 1000µm |
|
|
Number of size classes |
88 customized grades |
|
|
Accuracy |
≤3% (GBRM D50) |
|
|
Repeatability |
≤3% (GBRM D50) |
|
|
Resolution ratio |
Single peak, double peak, multi-peak |
|
|
Red light |
Max. 3mW, Semiconductor optical fiber laser, 635nm |
|
|
Lens arrangement |
Single lens |
|
|
Lens design |
F-Theta Lenses |
|
|
Effective focal length |
223mm |
|
|
Arrangement |
Log-spaced array |
|
|
Quantity |
68 pieces |
|
|
Light path adjustment |
Intelligent automatic alignment |
|
|
Dispersion type |
Dry |
|
|
Air flowrate |
400-6000L/min |
|
|
Pressure |
0.5-0.8MPa |
|
|
Air filter |
0.3µm, 0.01µm, water, oil |
|
|
21 CFR Part 11 |
Enable |
|
|
SOP Designer |
Enable |
|
|
Report |
More than 14 formats report |
|
|
Auto test |
Enable |
|
|
Data export |
EXCEL, PDF, WORD, JPG and etc. |
|
|
Laser class |
Class I laser product |
|
|
Supply voltage |
220VAC |
|
|
Dimension |
800mm x 280mm x 280mm (L x W x H) |
|
|
Weight |
21kg |
|
|
Computer interface |
At least one USB2.0 port required |
|
|
Operation system |
Windows XP, Windows 7,8 or 10 |
|
|
Hardware specification |
Intel Core I5, 4GB RAM, 250GB HD |
|

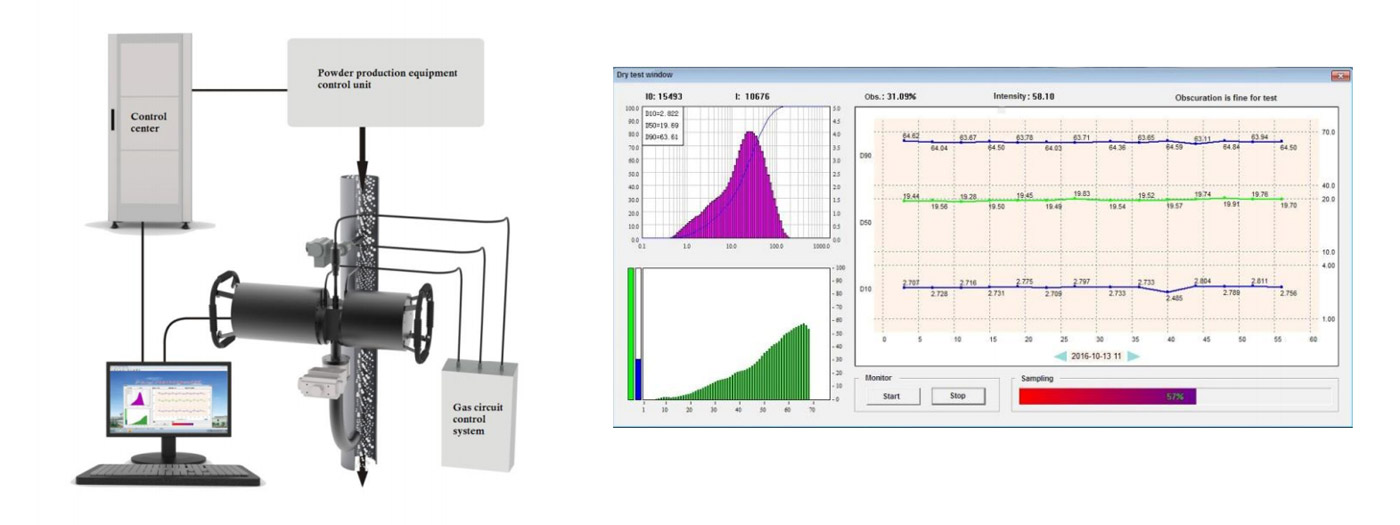

As well as being able to continuously monitor particle size, the system also has a function for real-time feedback and control. The system will collect real-time size data and perform calculations against the particle size control limits. It automatically generates the feedback signal to the control center. This closed loop feedback control system will achieve better quality improvement, higher efficiency, reduce wastage and save energy.
