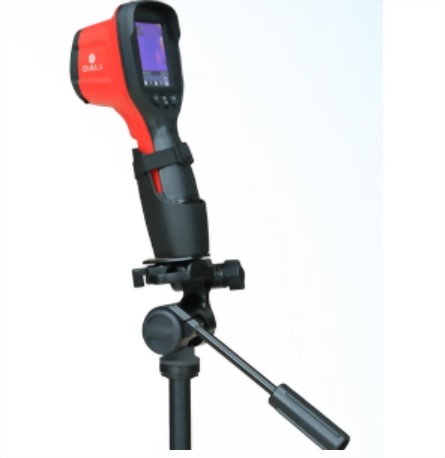

W100
• Instant body temperature measurement
• External display can be connected
Pedestrian temperature in other public areas. We offer a quick and easy way to screen large numbers of faces
Non-invasive, non-contact method for increasing skin temperature. Potentially feverish individuals can be at inconvenience and on pedestrians
Flow is detected with minimal interference.
Spec
|
Items |
Specifications |
|
|
TE-W100 |
||
|
Detector |
Type |
Uncooled FPA microbolometer |
|
Pixels |
160x120 |
|
|
Special range |
8-14um |
|
|
Frame rate |
60 Hz |
|
|
NETD |
0.06℃@30℃ |
|
|
Lens |
FOV |
28°x37° |
|
Focal range |
0.2m~∞ |
|
|
Focus method |
Fixed focus |
|
|
Imager performance |
Spatial resolution |
4.4mrad |
|
Visual camera |
Available |
|
|
Image Display |
LCD display |
3.2" TFT LCD，240x320 |
|
Color palettes |
4 options including (Black-hot、white-hot、rainbow red-hot ,iron hot) |
|
|
Image display |
Infrared image and visible light image can be quickly switched |
|
|
Image processing |
Auto |
|
|
Measurement |
Temperature range |
20℃~ +50℃ |
|
Accuracy |
±0.5℃ / ±0.3℃（with black body） |
|
|
Temperature calibration |
Auto |
|
|
Measurement mode |
Central point，full screen highest/lowest temperature，temperature alarm (sound, color) |
|
|
Emissivity correction |
Adjustable from 0.01 to 1.0 (in increments of 0.01) |
|
|
Function setting |
Date / time, temperature unit ℃ / ℉ / K, language |
|
|
Image Storage |
Storage card |
Built in 16GB memory card |
|
Storage method |
Manual storage ，single infrared frame |
|
|
Image format |
BMP/DLV format，with original infrared measurement data |
|
|
Power supply |
Battery |
Special package rechargeable lithium battery, replaceable |
|
Battery working time |
Continuously working for 3 hours |
|
|
Charging method |
USB |
|
|
Energy saving method |
Auto sleeping , auto shut down |
|
|
Interface |
Power interface |
USB Type-C |
|
Data transmission |
USB Type-C |
|
|
Video output |
Available |
|
|
Tripod interface |
Optional |
|
|
Environmental parameter |
Working temperature |
0℃~+40℃ |
|
Storage temperature |
-25℃~+60℃ |
|
|
Moisture |
≤90% Non-condensing |
|
|
Protection |
IP54 |
|
|
Shock resistance |
30g，GB/T2423.5（IEC60068-2-27） |
|
|
Vibration resistance |
2g，GB/T2423.10（IEC60068-2-6） |
|
|
Drop resistance |
1.5m，GB/T2423.8（IEC60068-2-32） |
|
|
Safe code |
EMC |
In conformity to CE |
|
Toxic |
In conformity to RoHS/PAH |
|
|
Physical dimension |
Size |
240*88*135mm (H*W*D) |
|
Weight (battery included) |
510g |
|
